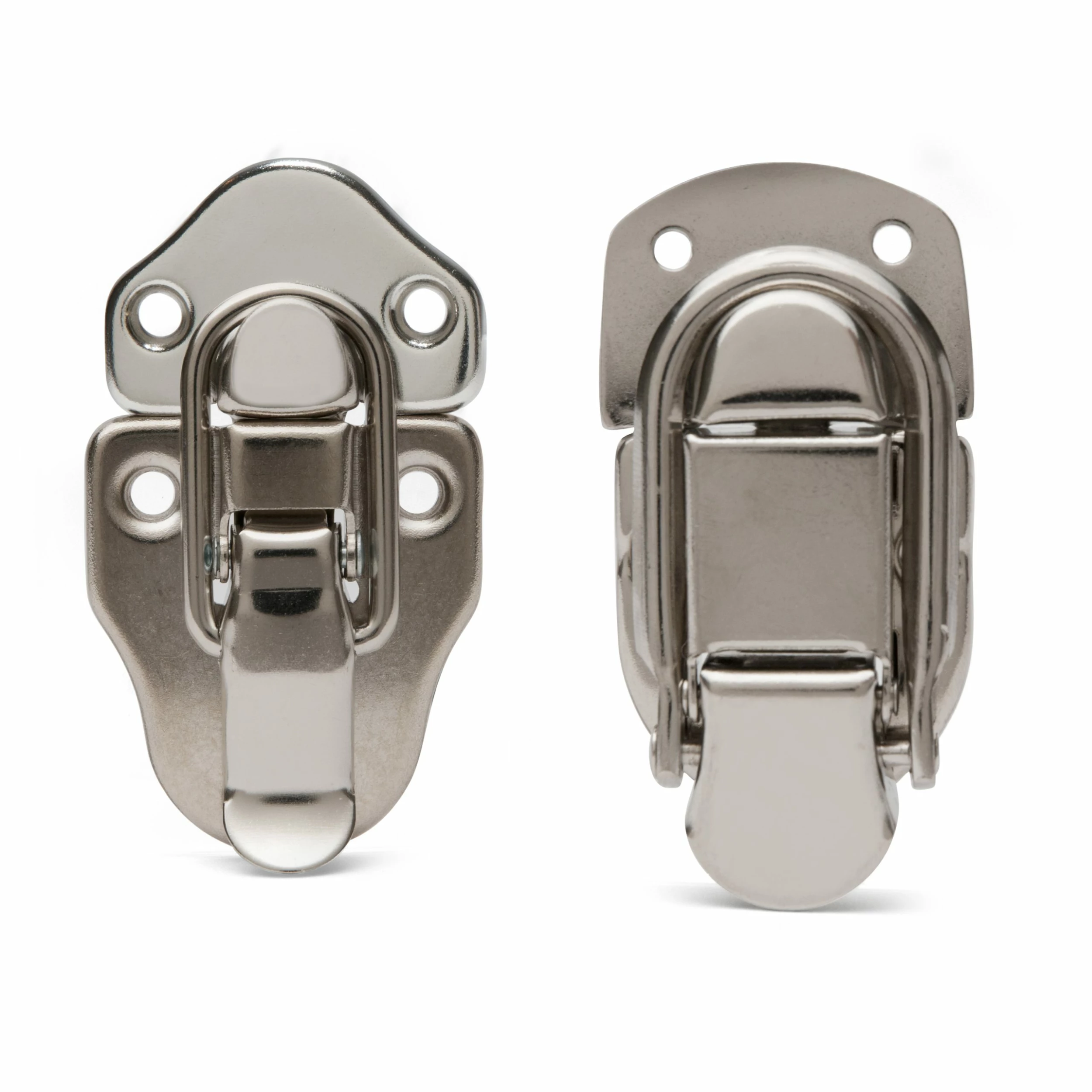

Drawbolts
For mounting on flush-fitting surfaces. Rivets not included. Nickel-plated.
|
|
|

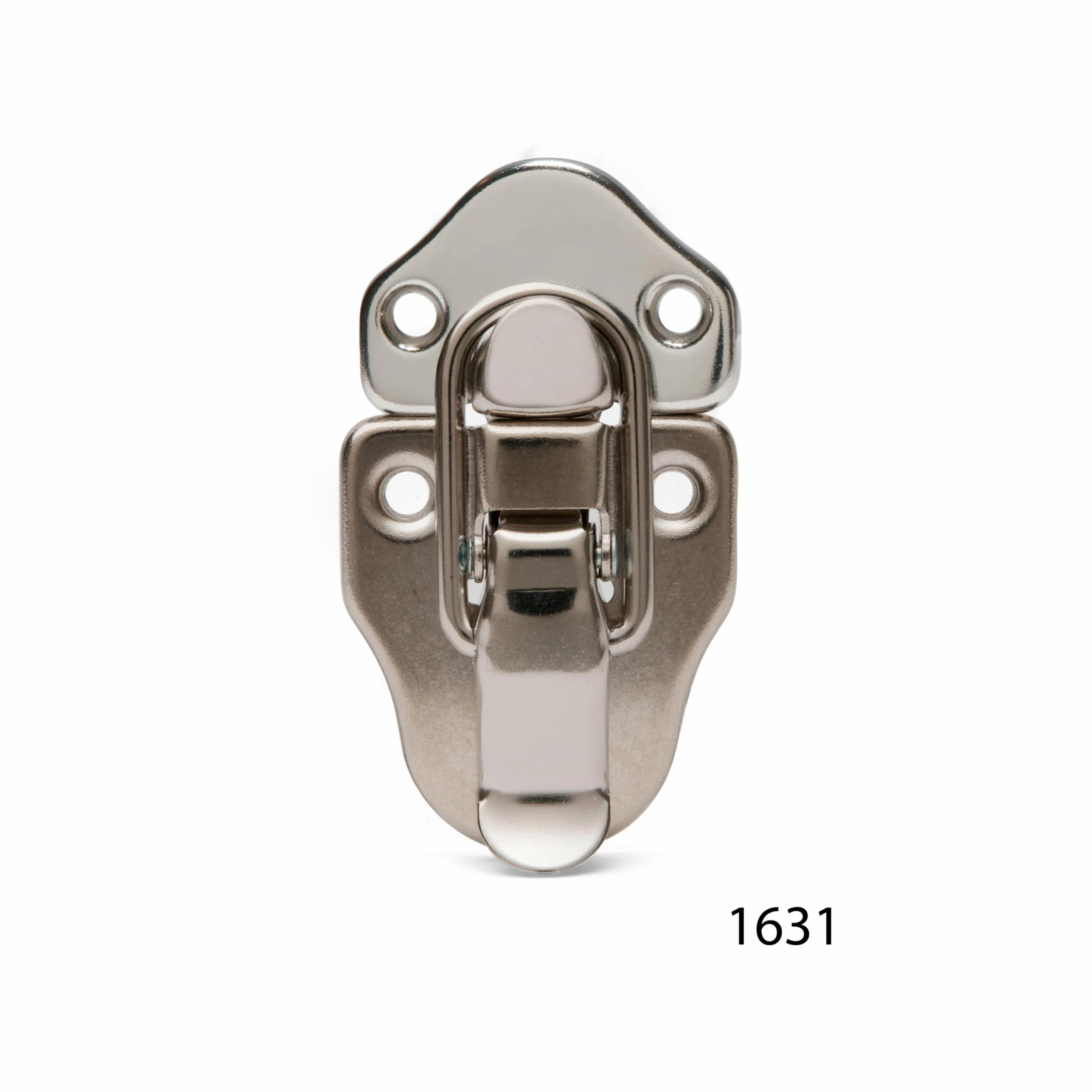

| 1631 | Mounting hole spacing on each plate is 1″ (25.40mm), and 11/16″ (17.46mm) from plate to plate when latched. Drawbolts have 1/8″ (3.18mm) diameter mounting holes. |
|
|
|

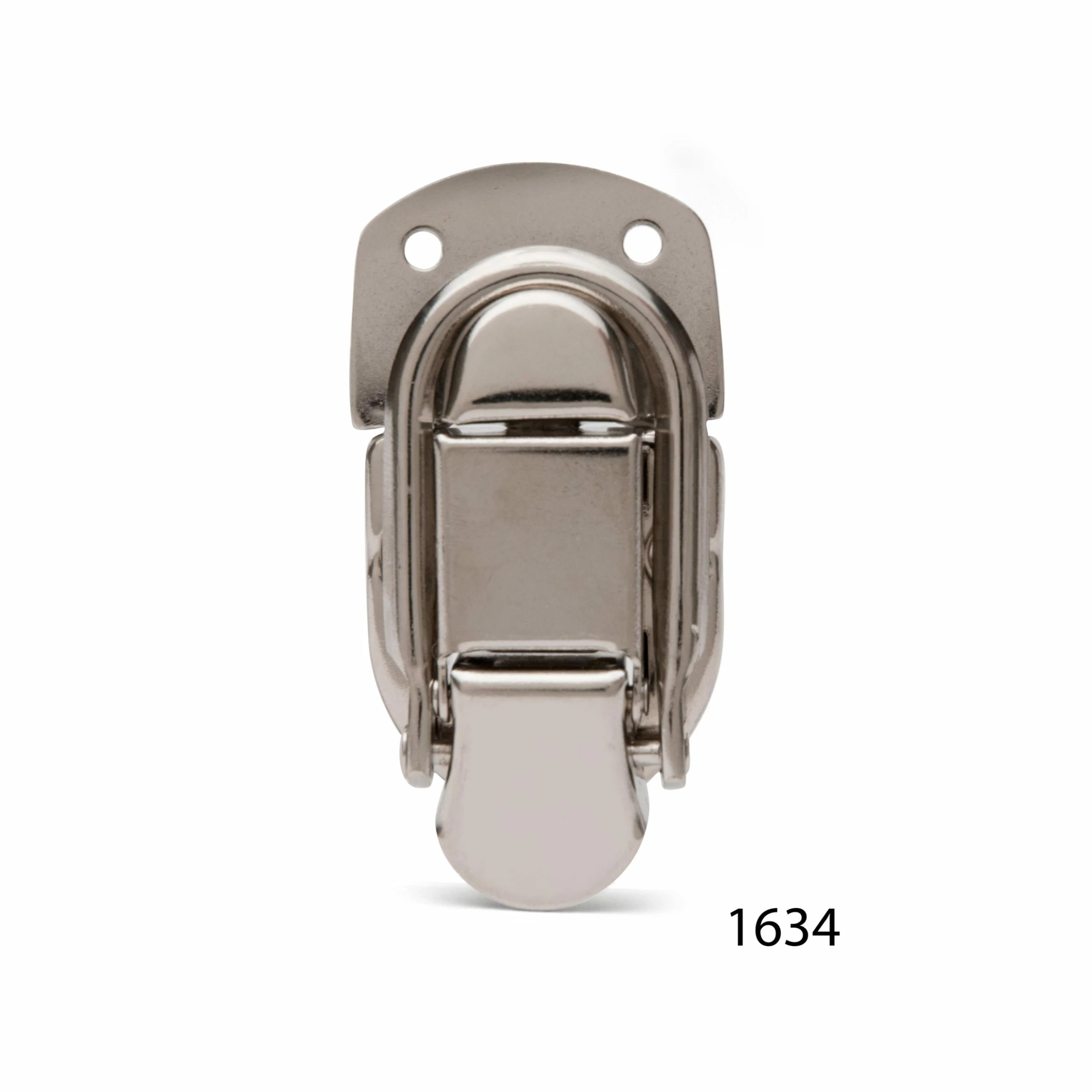

| 1634 | 1″ (25.40mm) mounting hole spacing on the lower plate, 13/16″ (20.64mm) on the upper plate, and 1-1/8″ (28.58mm) from plate to plate when latched. Drawbolts have 1/8″ (3.18mm) diameter mounting holes. |
|
|
|
