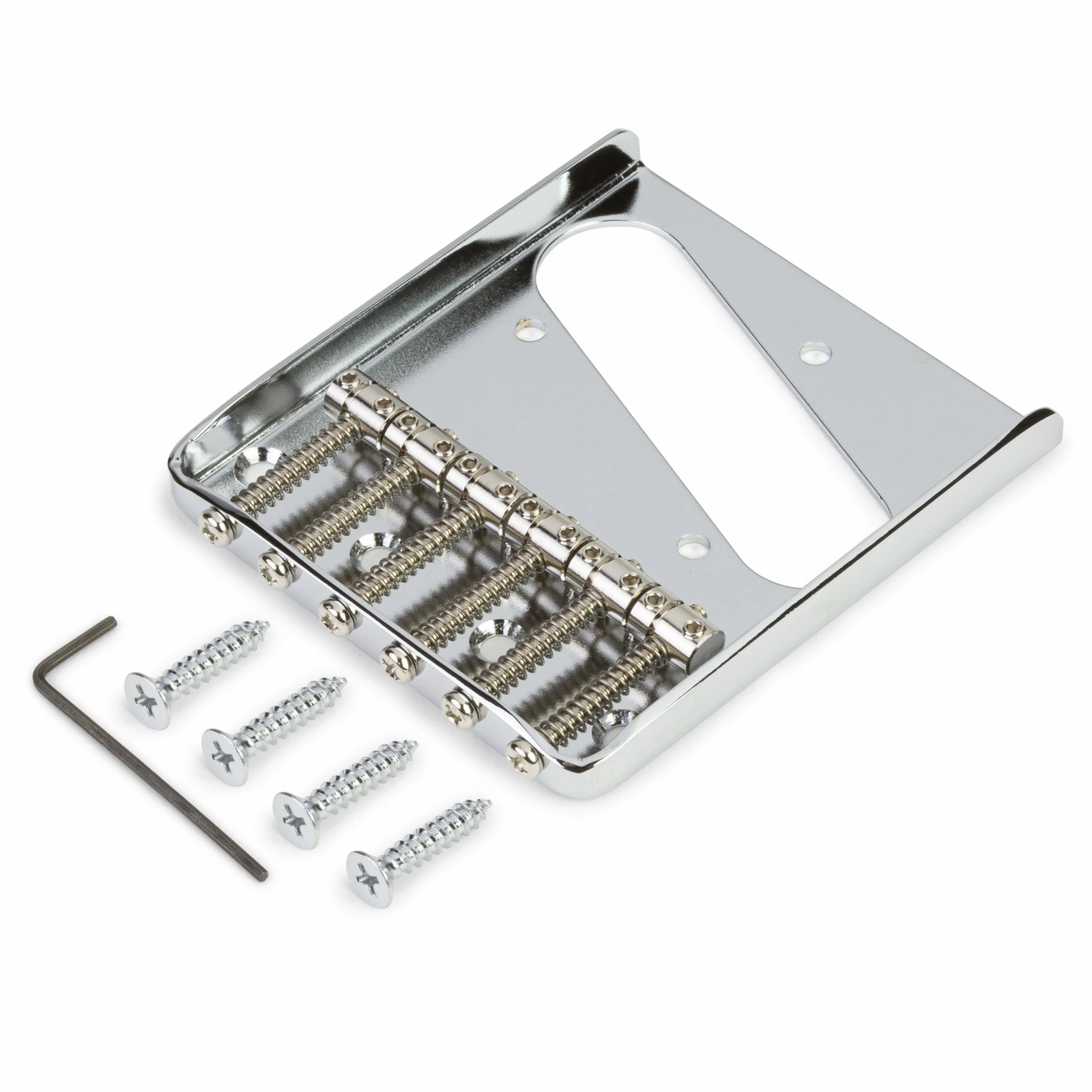

Traditional 6-Saddle Bridge For Telecaster

Mid 70s style bridge for a Tele® lead pickup. Six nickel-plated grooved saddles for individual string intonation. Allen-adjustable string height.

Stamped-steel baseplate with shiny chrome finish. Mounting screws included.

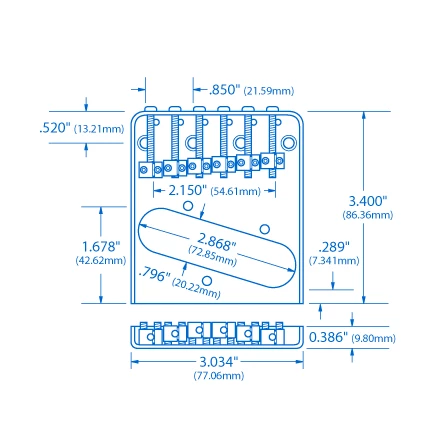

String spread 2-5/32″ (54.61mm)

Baseplate dimensions 3-5/16″ x 3″ (84.14mm x 76.20mm)

Designed for string mounting through the guitar body. Four mounting screw holes have 2-9/16″ (65.09mm) center-to-center spread.

Adjust saddle height with a 1.5mm allen wrench.

Installation note: Replacing a modern Fender American Standard Tele bridge with a Traditional Bridge for Tele will require additional drilling.

Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.
